DESIGN

External antenna port

Bluetooth 5.3 Low Energy, Bluetooth TX power: Support up to +13 dBm (visible range over 100 meters)

Power Over Ethernet Port support 10/100MB

Power supply:

• PoE (Power over Ethernet)
• DC 14 – 32 V

Operating temperature: –20 to +75 °C

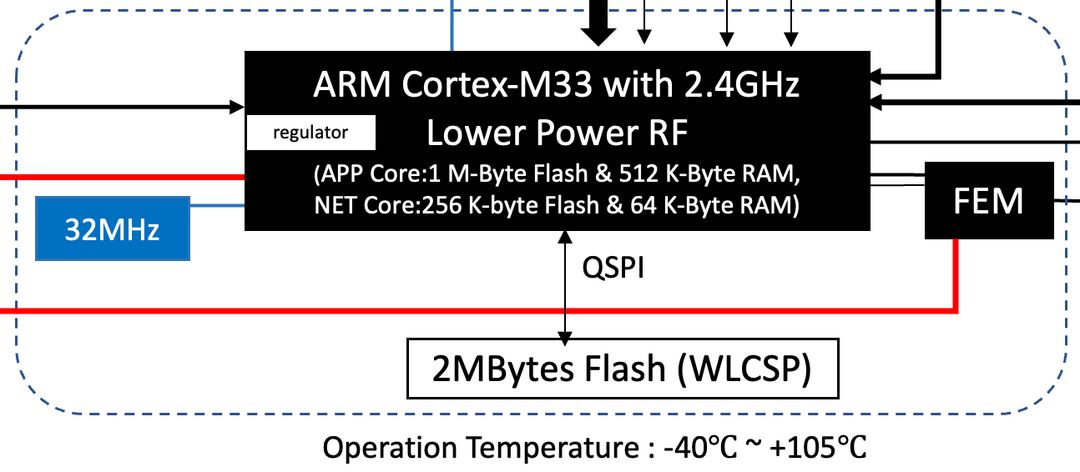

Core M.2 LGA module operating temperature: –40 to +105 °C

Radio certifications: USA / Europe / Japan / Australia / Canada / Taiwan / Bluetooth

Hardware Interfaces

• uSD Card Socket
• PoE Ethernet Port
• RS-485AB Port
• 24V/1A DC Output
• 2 x 0-10V DC Input
• 2 x 0-10V DC Output
• 2 CH 24V Signal Input
• 4 CH 24V Signal Output

Bluetooth Mesh & Bluetooth NLC Models

• ODM/OEM for customization services
• Generic OnOff
• Generic Level
• Time Client
• Scene Client
• Schedule Client
• Lighting Lightness Client
• Lighting LC Client
• Lighting CTL Client
• Lighting HCL Client
• Sensor Client

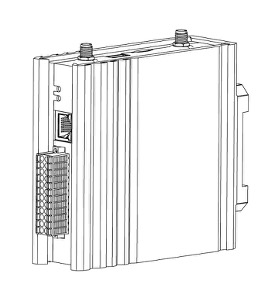

Dimension

• 115(L) * 110(W) * 38(H) mm
