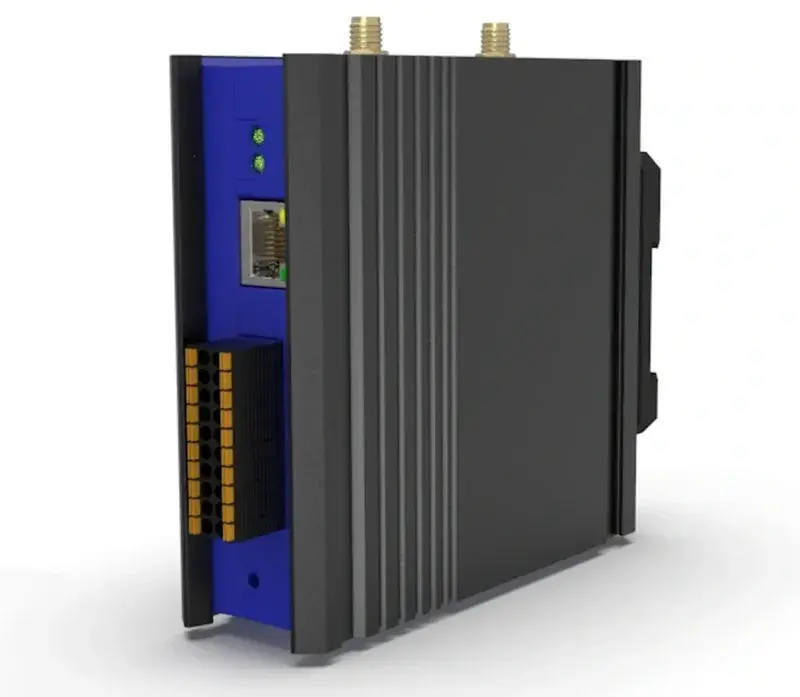

BFi53ER0-FL

Bluetooth (> 100Meter LOS) , 10/100M NIC PoE Platform

Feature

• External antenna port
• Bluetooth 5.3 Low Energy
• Bluetooth TX power: Support up to +13 dBm (visible range over 100 meters)
• Power supply:

1. PoE (Power over Ethernet)
2. DC 14 – 32 V

• Operating temperature: –20 to +75 °C
• Core module operating temperature: –40 to +105 °C
• Radio certifications: USA / Europe / Japan / Australia / Canada / Taiwan / Bluetooth

Interfaces

• uSD Card Socket
• PoE Ethernet Port
• RS-485AB Port
• 24V/1A DC Output
• 2 x 0-10V DC Input
• 2 x 0-10V DC Output
• 2 CH 24V Signal Input
• 4 CH 24V Signal Output

Bluetooth Mesh & Bluetooth NLC Models

• ODM/OEM for customization services
• Generic OnOff
• Generic Level
• Time Client
• Scene Client
• Schedule Client
• Lighting Lightness Client
• Lighting LC Client
• Lighting CTL Client
• Lighting HCL Client
• Sensor Client
• Radio certifications: USA / Europe / Japan / Australia / Canada / Taiwan / Bluetooth

(detail .... )

MSRP(USD) 420

Contact: hello@flsemi.us

BFi53CVD-FL

DC24CV 5 Channels Constant Voltage (C.V.) Dimmer

Bluetooth (> 100Meter LOS) with NLC compatible, DC24V power source, with DC24V Output, 5 independent channel control with fixture type setup. (CCCCC/CWCWC/RGBW/RGBCW)

6A/Per Channel

Battery-free Switch/Sensor support

Total Output Power: 144W (max.)

MSRP(USD) 120

Contact: hello@flsemi.us

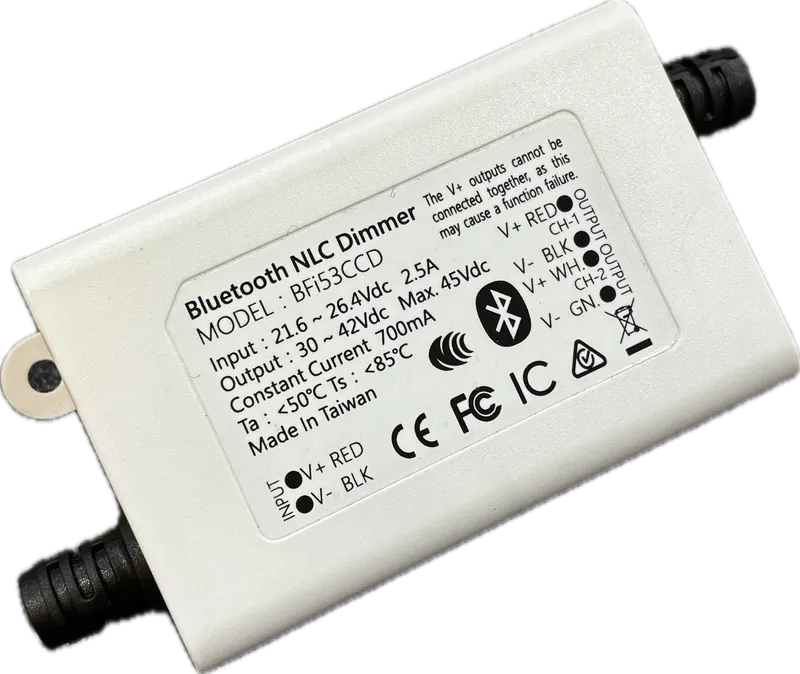

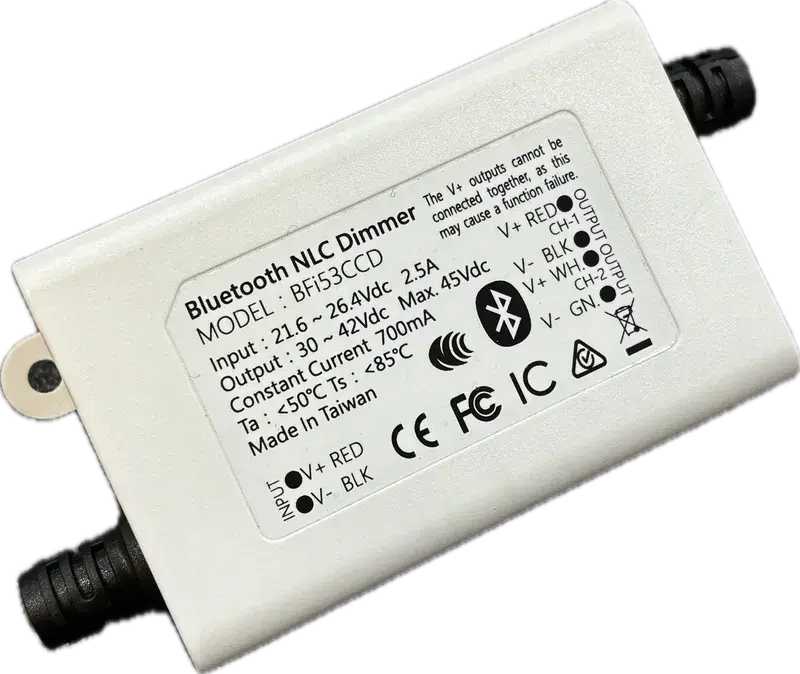

BFi53CCD-FL

DC24CV 2 Channels Constant Current (C.C.) Dimmer

Bluetooth (> 100Meter LOS) with NLC compatible, DC24V power source, with for DC36V COB, 2 independent channel control with for lightness control. Output power programable.

25W/Per Channel

Battery-free Switch/Sensor support

Total Output Power: 25W x2 = 50W(max.)

MSRP(USD) 120

Contact: hello@flsemi.us

BFi91CDK-FL

The sensor platform with DECT NR+ Command Line for you to experience our latest 5G DECT NR+ solution with sensor and data collection technology in 2 - 3 km (LOS) with < 1ms PCC.

DECT NR+ Preload Firmware for evaluation use

(Pre-Release)

• Communication Interface: USB (Type C)
• Boot CMD settings
• Uplink(UL) TX/RX Command
• Downlink(DL) TX/RX Command
• PCH/BCH TX/RX Command
• Input/Output message format - hex/binary
• Note - firmware is keep upgrading -

Sensors

• Bosch Environmental sensors for temperature, humidity, air quality, and air pressure
• ADI Low-power 3 axis accelerometer
• Bosch3-axis gyroscope with 3-axis accelerometer
• Bosch3 axis Magnetometer
